Product Details

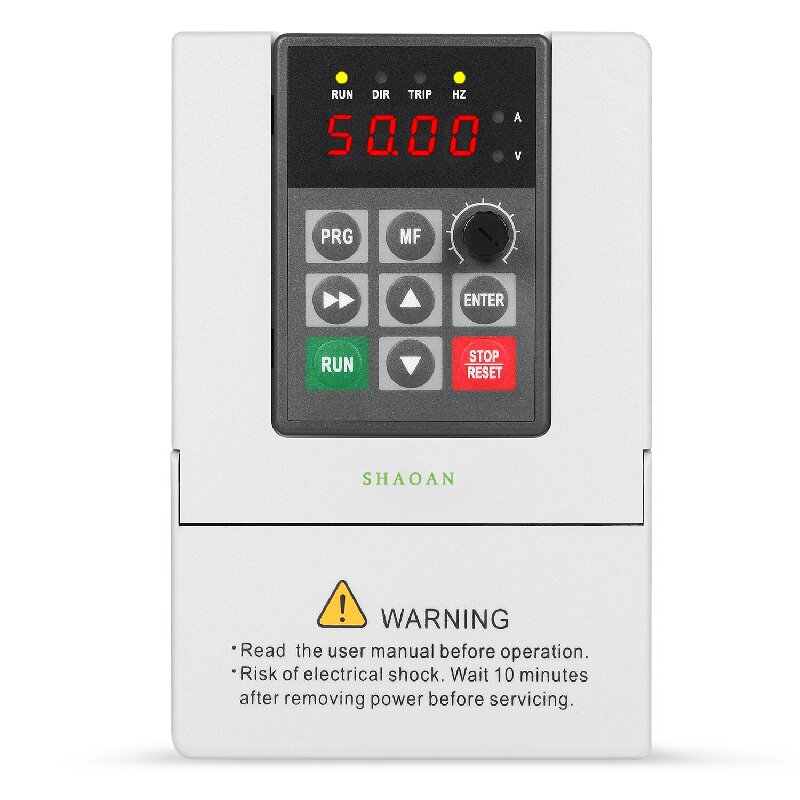

Technical specifications of SHAOAN 2.2kW solar pump inverter

Status	Criteria	Solar Pump Inverter SHAOAN

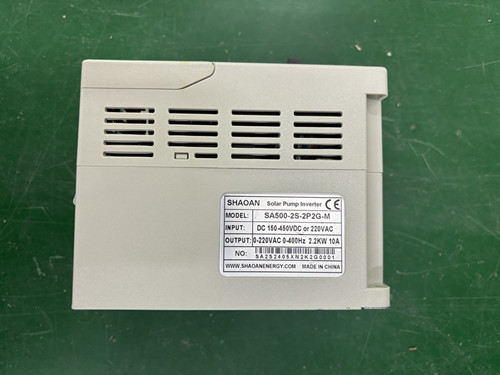

1	Product code	SA500-2S-2P2G-M
2	Inverter capacity	2.2kW
3	Engine type	Control of permanent magnet synchronous motors (PMSM) and asynchronous motors (AM)
4	Input voltage	150-450V DC or 220V AC
5	Output pressure	0-220V AC
6	Output frequency	0-400Hz
7	Output current	10A
8	Number of pump phases	1 phase
9	Protection function	Phase loss protection, phase short circuit protection, ground circuit protection, input and output short circuit protection
10	Water/dust resistance level	IP20
11	Cooling method	Air cooled
12	Running mode	MPPT, CVT
13	Ambient temperature range	-10°C ~ +50°C
14	MPPT efficiency	99.6%
15	Size	225x155x170 (mm)
16	Mass	1.5Kg
17	Guarantee	2 years
18	Standard	CE certificate

Advantages of 2.2kW solar pump inverter (solar pump inverter) 220V SHAOAN

– SWP systems consume little or no fuel. By using readily available sunlight, they avoid the constraints of poor or expensive fuel supply networks in rural areas.

– Unlike diesel-powered systems (which use a diesel generator to power the pump), solar pumps produce clean energy with zero or reduced emissions and pollutants. much.

– Solar pumping systems are durable and reliable. PV panels have a design life of over 20 years and solar pumps have few moving parts and require little maintenance (unlike diesel pumps).

– The solar pumping system is modular so it can be adjusted to current power needs and easily expanded by adding additional solar panels and accessories.

– A properly installed solar system is safe and poses little risk due to low system voltage. Adequate protection will minimize the risk of fire.

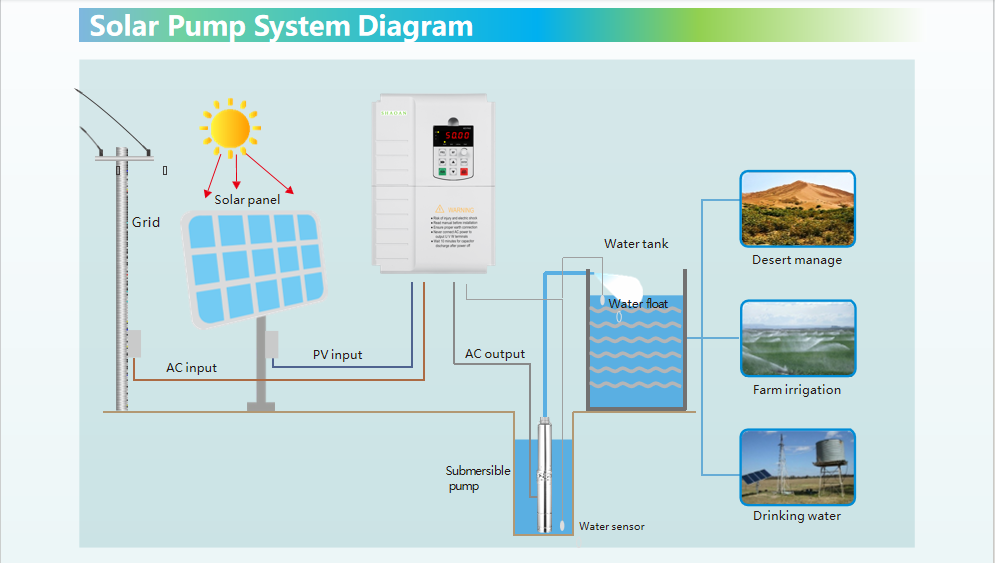

Application of SHAOAN 2.2kW 220V pump inverter

There are many practical applications of solar pump inverters in many different fields. Here are some common applications:

– Agricultural irrigation systems: In agriculture, solar pump inverters are used to regulate the speed and pressure of irrigation systems based on the available solar energy level. This helps optimize water and energy usage, improve production efficiency and reduce electricity costs.

– Clean water supply system: In areas where there is no grid power or where there is a need for local water supply, solar pump inverters can be used to operate clean water pumps from renewable energy sources. This helps to provide clean water in an efficient and sustainable way.

– Water supply systems in urban areas: In water supply systems in urban areas, solar pump inverters can be integrated to optimize the operation of water supply pumps to other areas. together. This reduces water and energy waste, improves system performance and reduces operating costs.

– Industrial and commercial applications: In industrial and commercial applications, solar pump inverters can be used to control pumping systems during production, cooling or transportation. This helps to optimize the operation of industrial processes, reduce energy costs and protect the environment.

– Independent solar water supply system: In remote areas or without grid infrastructure, solar pump inverters can be used to operate solar water supply systems. amount of sun. This helps provide clean water and energy independently and sustainably.

About the SHAOAN brand

SHAOAN Electric strives to become a leading company in R&D, Manufacturing and Sales of Industrial Automation Control and Green Energy products related to Variable Speed Drives (VFD), Solar Pump Inverters Solar Pump Inverter, etc

SHAOAN masters the core technology of control algorithm and has a good R&D team possessing more than 12 years of INVERTER technology. SHAOAN employees are all experienced in the VFD field and have more knowledge about the assembly and testing manufacturing process to maintain quality.
