Main Features:

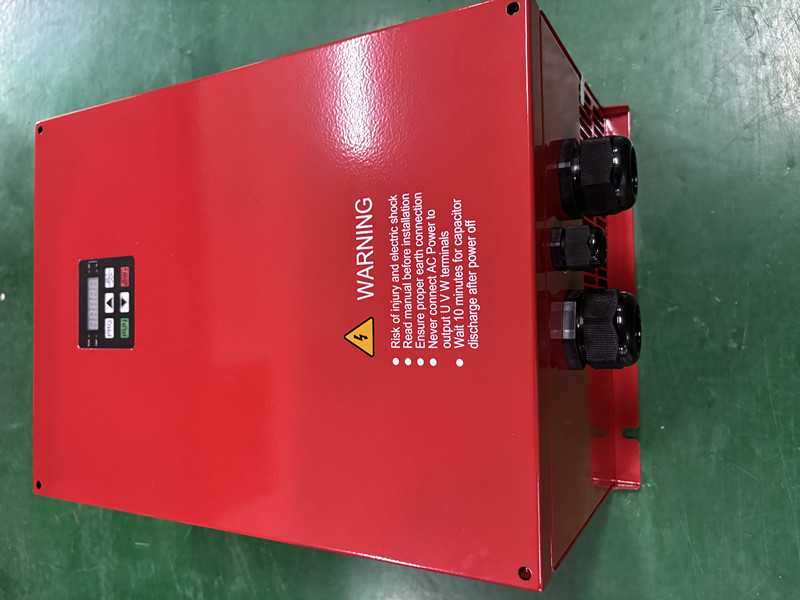

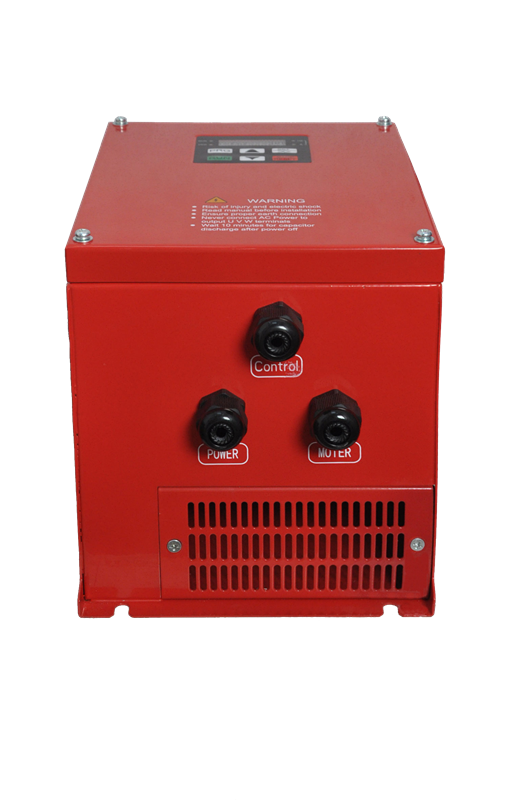

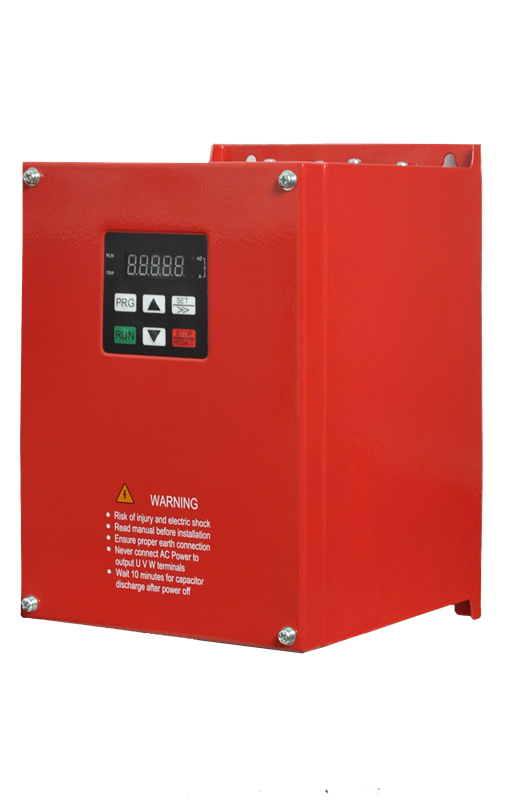

1-IP54 series solar pump inverter
2-High IP degree protection for sand,water etc
3-Big size and big fans for good cooling
4-Easy for wiring and maintaince
Power range:
For 220v pump: 1.5-11kw
For 380-480v pump: 1.5-11kw 0.75-30kw 380v
Model explanation:
Solar Pump Inverter Features:
Ø Maximum power point tracking (MPPT) with fast response speed and stable operation efficiency> 99%
Ø Suits for most 3 phase AC pumps and AC PMSM high efficiency pumps
Ø The working voltage of solar panel can set by manual or MPPT automatically tracking
Ø Compatible with dual power input, AC grid and DC power supply input
Ø Built in automatic sleep-wake up function,
Ø Dry run (under load ) protection
Ø Motor maximum current protection
Ø Low input power protection
Ø Lowest stop frequency protection
Ø The PQ (power/flow) performance curve enables calculating the flow output from the pump
Ø Digital control for fully automatic operation, data storage and protective functions
Ø Intelligent power module (IPM) for the main circuit
Ø LED display operating panel and support remote control
Ø Low water probe sensor, and water level control function
Ø Strong lightning protection
Ø Ambient temperature for using: -10 to +50˚C.
ü Clock relay card for timing stop and stop control
Ø LCD keypad as optional
Ø Input VOC auto-detect function
Model Selection:
|
SA500-XX-S 2S series: Input 150-450V DC or 200 to 240V AC, VOC 350V DC |
|||||||
|
1 |
-2S-1P5G-S |
7A |
0-256VAC |
1.5KW |
245**160*180 |
260 to 375 |
5 |
|
2 |
SA500-2S-2P2G-S |
10A |
0-256VAC |
2.2KW |
245**160*180 |
260 to 375 |
5 |
|
3 |
SA500-2S-004G-S |
16A |
0-256VAC |
4.0KW |
320*215*190 |
260 to 375 |
7.5 |
|
SA500-XX-S 4T series : Input 350 to 800V/900V DC or 380 to 480V AC, VOC 620V DC |
|||||||
|
1 |
SA500-4T-2P2G-S |
5A |
0-480VAC |
2.2KW |
245**160*180 |
486 to 750 |
5 |
|
2 |
SA500-4T-004G-S |
10A |
0-480VAC |
4KW |
245**160*180 |
486 to 750 |
5 |
|
3 |
SA500-4T-5P5G-S |
13A |
0-480VAC |
5.5KW |
320*215*190 |
486 to 750 |
7.5 |
|
4 |
SA500-4T-7P5G-S |
17A |
0-480VAC |
7.5KW |
320*215*190 |
486 to 750 |
7.5 |
|
5 |
SA500-4T-011G-S |
25A |
0-480VAC |
11KW |
320*215*190 |
486 to 750 |
7.5 |
|
6 |
SA500-4T-015G-S |
30A |
0-480VAC |
15KW |
410*275*200 |
486 to 750 |
13 |
|
7 |
SA500-4T-018G-S |
37A |
0-480VAC |
18KW |
410*275*200 |
486 to 750 |
13 |
|
8 |
SA500-4T-022G-S |
45A |
0-480VAC |
22KW |
410*275*200 |
486 to 750 |
13 |
