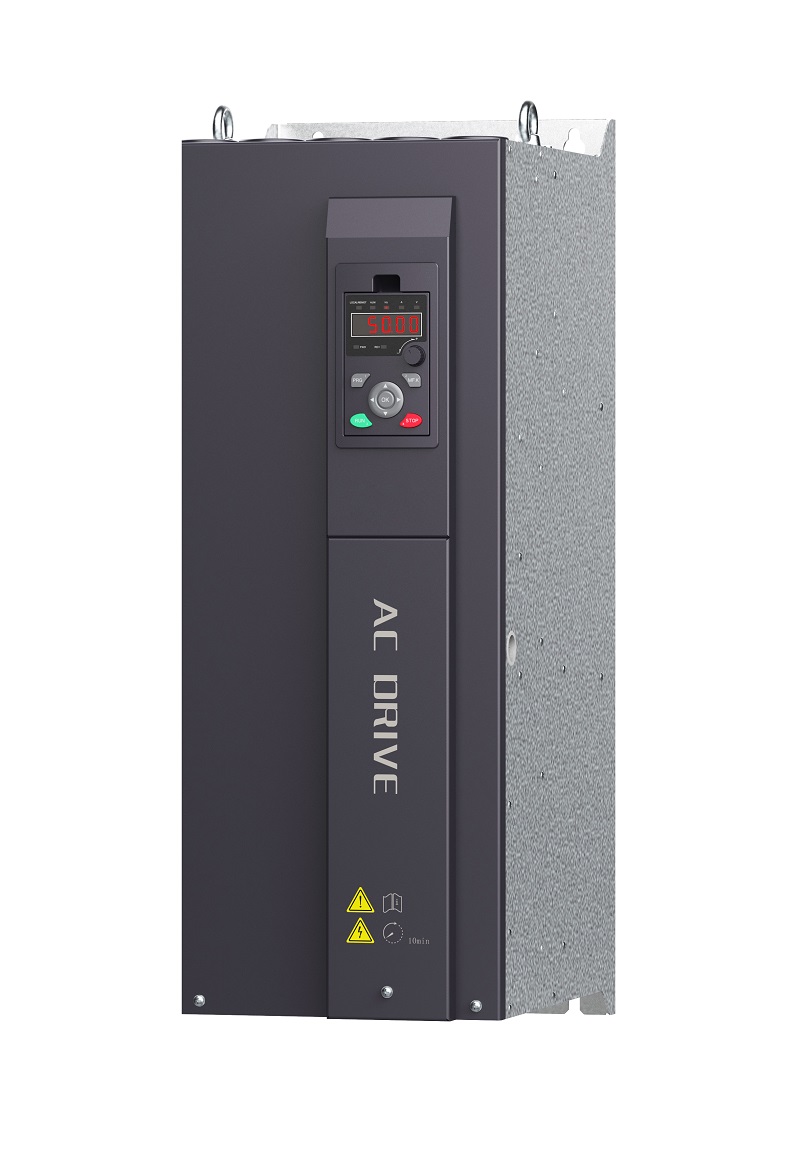

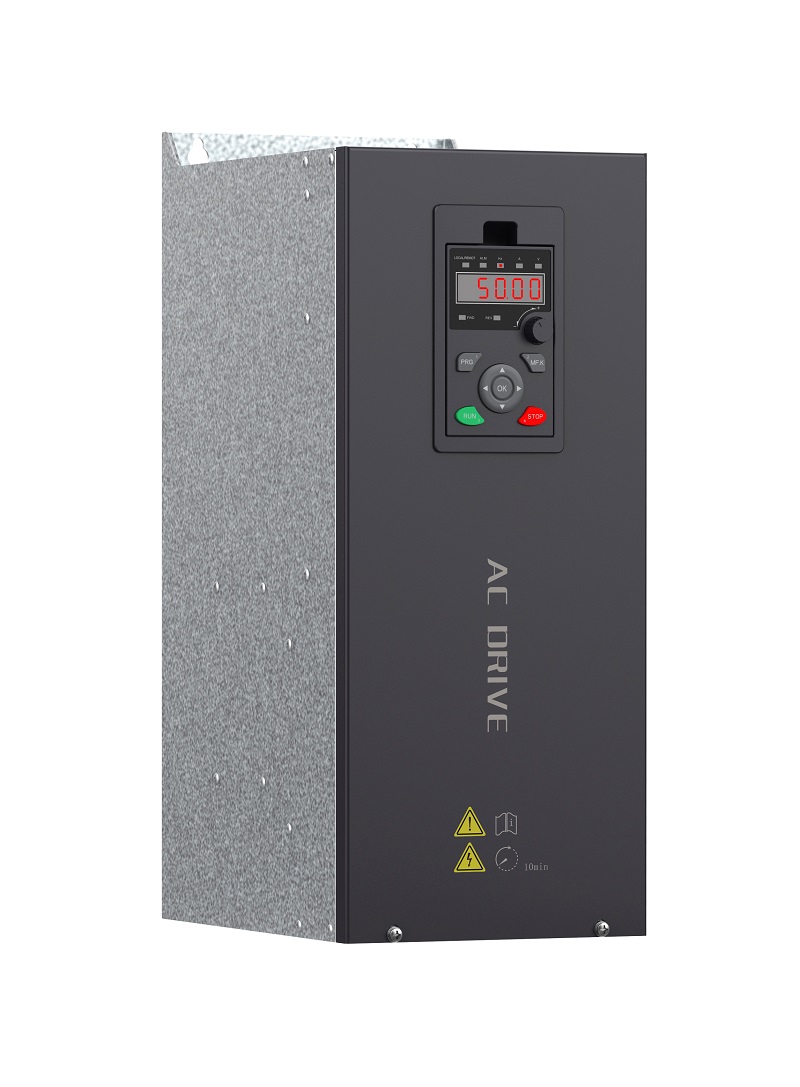

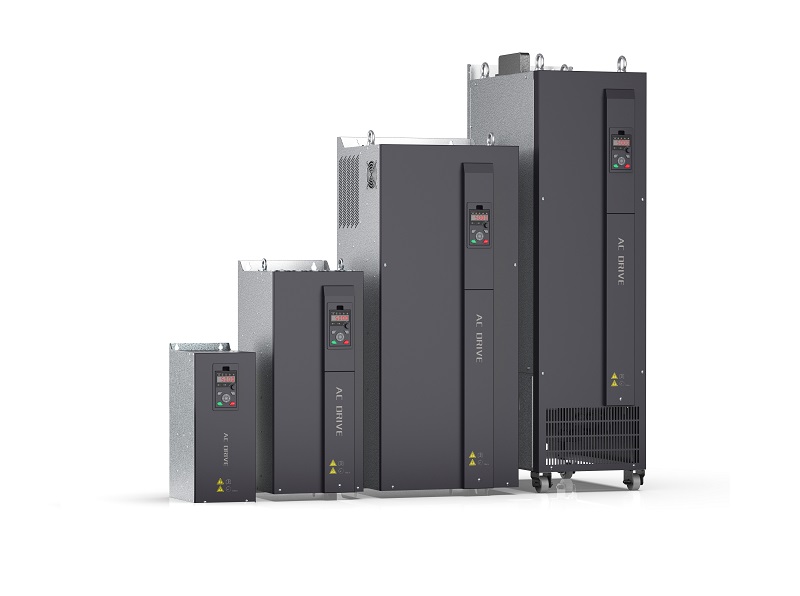

S600 series Variable Frequency Inverter is compatible with synchronous and asynchronous motor control, and under the premise of high performance and high reliability, the components are reasonably arranged to achieve a book-style narrow body design.
| Model No. | Rated power (KW) |
Rated current ( A) |
G.W (Kgs) |
Packed Size (mm) |
| S600-7T-045 | 45 | 55A | 29 | 738*385*455 |
| S600-7T-055G | 55 | 68A | 29 | 738*385*455 |
| S600-7T-075G | 75 | 86A | 30 | 738*385*455 |
| S600-7T-093G | 93 | 100A | 30 | 738*385*455 |
| S600-7T-110G | 110 | 120A | 30 | 940*447*569 |
| S600-7T-132G | 132 | 150A | 60 | 940*447*569 |
| S600-7T-160G | 160 | 175A | 60 | 940*447*569 |
| S600-7T-200G | 200 | 215A | 95 | 975*550*595 |
| S600-7T-250G | 250 | 260A | 97 | 975*550*595 |
| S600-7T-280G | 280 | 299A | 98 | 975*550*595 |
| S600-7T-315G | 315 | 330A | 137 | 1062*604*594 |
| S600-7T-355G | 355 | 374A | 140 | 1062*604*594 |
| S600-7T400G | 400 | 410 | 145 | 1062*604*594 |
| S600-7T-450G | 450 | 465 | 170 | 1072*804*624 |
| S600-7T-500G | 500 | 550 | 172 | 1072*804*624 |
| S600-7T-560G | 560 | 600 | 174 | 1072*804*624 |
| S600-7T-630G | 630 | 680A | 175 | 1072*804*624 |
The warranty period of this product is 24 months (subject to the barcode information on the fuselage). During the warranty period, if the product fails or is damaged under normal use according to the instruction manual, our company is responsible for free maintenance.
