An AC drive (or variable frequency drive) is an electronic device that controls the speed and torque of an AC motor by varying the frequency and voltage of the input power.
1. Technical Description
The core function of an AC drive is to convert fixed-frequency AC power (such as 50 Hz or 60 Hz) into an output with variable frequency and voltage. By utilizing VVVF (Variable Voltage Variable Frequency) or vector control technology, it enables precise speed control and energy-efficient operation of the motor. Common topologies include V/F control, open-loop vector control, and closed-loop vector control.
Key Specifications:
1:Power Range: 0.75 kW to 630kW+
2:Input Voltage: Single-phase 220 V / Three-phase 380 V / 690 V, etc.
3:Control Modes: V/F, Sensorless Vector Control, Closed-loop Vector Control
2. Product Description
The AC Drive serves as the “energy-saving heart” of motor systems. By precisely matching motor output to load requirements, it can achieve energy savings of 20% to 60%, while also providing features such as soft start, overload protection, and remote monitoring. It is widely used in equipment such as pumps, fans, compressors, and conveyor belts.
Key Selling Points:
1：Energy Efficiency and Reduced Consumption
2：Soft Start (Reduces Mechanical Shock)
3：Precise Control
4：Extended Equipment Lifespan
5：Remote Monitoring and Automation Integration
3. Product Category Descriptions (Catalog/Brochure Terminology)

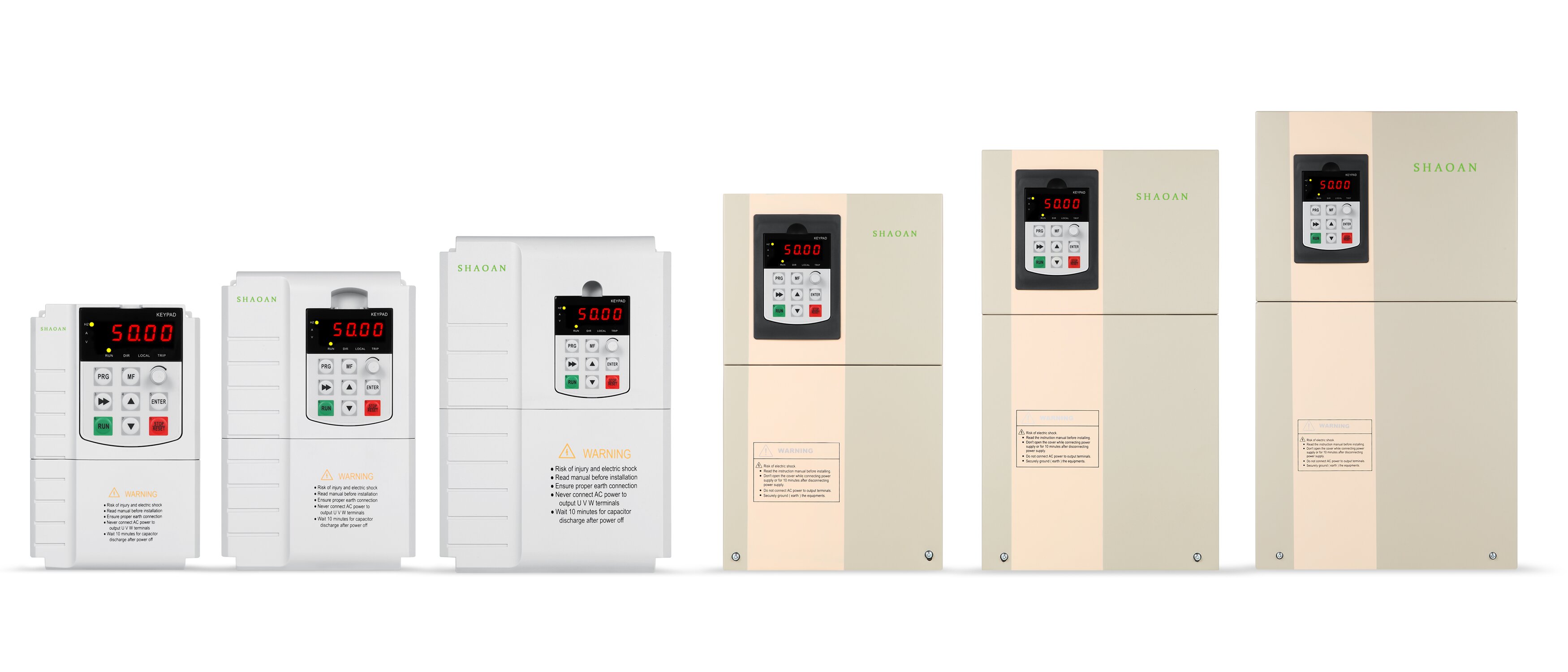

We offer a full range of AC drive products:
1：General-purpose inverters: Suitable for conventional loads such as fans, pumps, and conveyor belts
2：Special-purpose inverters: Such as those designed specifically for pumps, air compressors, and injection molding machines
3：PV water pump inverters: DC input, AC output, specifically designed for solar water pump systems
| ESPECIFICACIONES DE VARIADOR (Specifications)(Spanish and English) |
YES / NO | OBSERVACIONES |
| Uso general (multiproposito)/General use (multi-purpose) | yes | |
| Uso bomba/Pump usage |
yes | Entrada de 220 V con salida monofásica o trifásica. Entrada de 380 V a 480 V con salida trifásica.Y la entrada de energía solar. |
| Protección Ambiental (IP)/Environmental Protection (IP) |
yes | IP20/IP54 |
| Control PID avanzado/Advanced PID Control |
yes | |
| Control vectorial en lazo abierto de motores IM y PM Open-loop vector control of IM and PM motors |
yes | |
| Arranque / Parada Suave Soft Start / Soft Stop |
yes | |
| Proteccion como trabajo en seco Protection as a dry job |
yes | |
| Control Multi-bomba /Multi-Pump Control |
yes | |
| Filtro EMC / EMC filter |
yes | piezas opcionales |
| Reactancia de entrada o de linea Input reactance or line reactance |
yes | piezas opcionales |
| Reactor DC (Choke) /DC Reactor (Choke) |
yes | piezas opcionales |
| PLC Interno (capacidad de 2K pasos)/ Internal PLC (2K-step capacity) |
yes | |
| Control de freno integrado para toda la serie Integrated brake control for the entire series |
yes | |
| Teclado LED de 5 dígitos extraíble para operación remota Removable 5-digit LED keypad for remote operation |
yes | |
| Función de desconexión segura Safety Torque Off (SIL2/PLd) Safety Torque Off (SIL2/PLd) function |
yes | |
| Tratamiento tropicalizado en las PCB (IEC 60721-3-3 clase 3C2) y diseño térmico adecuado para aplicaciones en ambientes severos Tropicalized treatment on PCBs (IEC 60721-3-3 Class 3C2) and thermal design suitable for applications in harsh environments |
yes | |
| Auto-rearme /Re-arm myself |
yes | |
| Compatibilidad con Sensores/ Sensor Compatibility |
yes | |
| Comunicación (RS485 / Modbus)/Communication (RS485 / Modbus) |
yes | RS485 |
| Opciones de tarjetas de comunicación: CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT Communication card options: CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT |
No | |
| Funciones Inteligentes/Smart Features |
yes | |
| Modo Anti-obstrucción/Anti-clogging Mode |
yes | |
| Auto-sleep / Wake Up |
yes | |
| Alternancia cronométrica entre bombas/Timed switching between pumps |
yes | |
| Historial de fallas y eventos/Failure and Event History |
yes |
