1. Maximum power point tracking (MPPT) with fast response speed and stable operation efficiency> 99%
2. Suits for most 3 phase AC pumps and AC PMSM high efficiency pumps
3. Compatible with AC grid and DC power supply input at same time
4. Built in automatic sleep-wake up function
5. Dry run (under load ) protection
6. Motor maximum current protection
7. Low input power protection
8. Lowest stop frequency protection
9. The PQ (power/flow) performance curve enables calculating the flow output from the pump
10. Digital control for fully automatic operation, data storage and protective functions
11. Low water probe sensor, and water level control function
12. Strong lightning protection
13. Ambient temperature for using: -10 to +50˚C
14. Clock relay card for timing stop and stop control
15. LCD keypad as optional
16. Input VOC auto-detect function

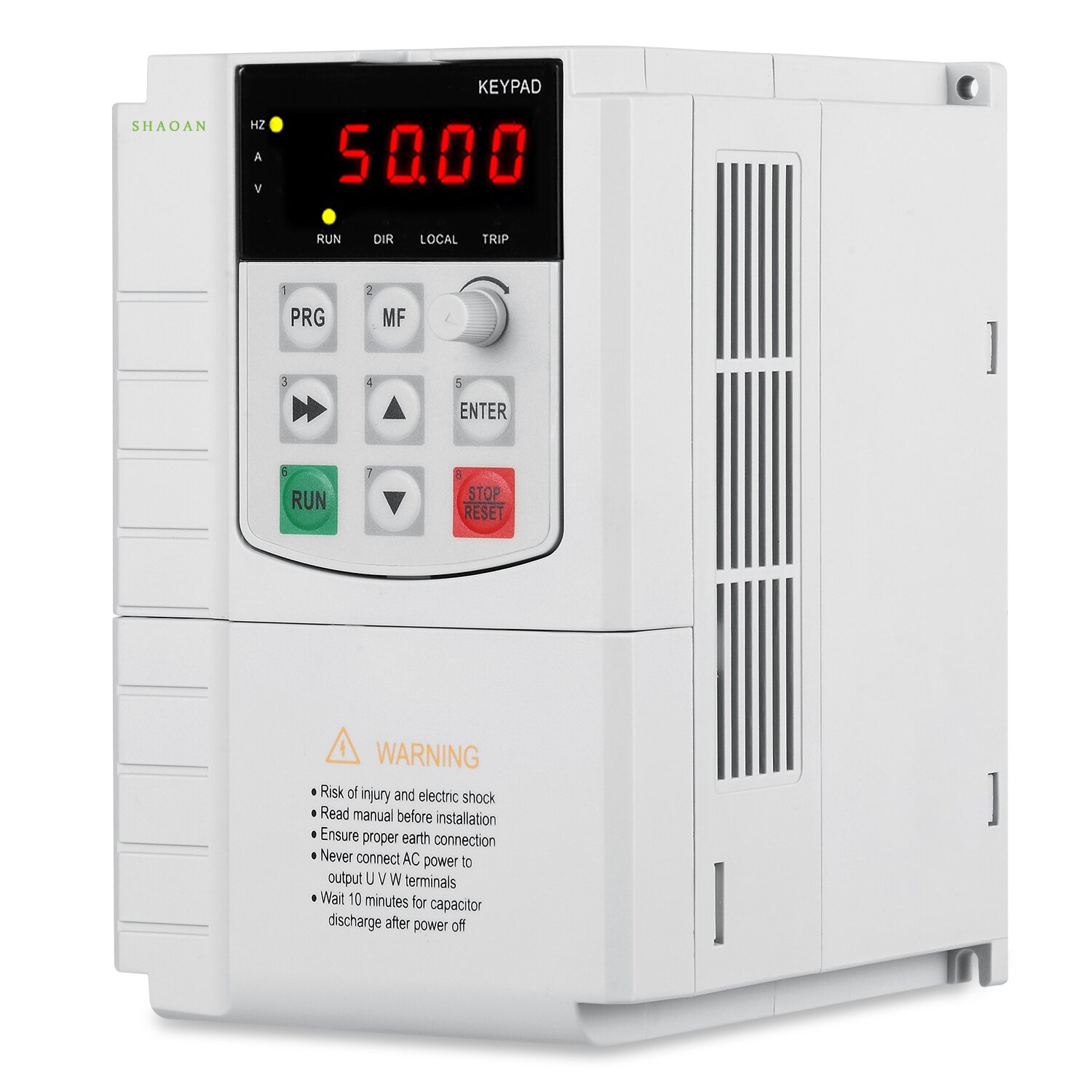

| Status | Criteria | Solar Pump Inverter Shaoan |
| first | Product code | SA500-4T-004G |
| 2 | Inverter capacity | 4kW (5.36HP) |
| 3 | Engine type | Control of permanent magnet synchronous motors (PMSM) and asynchronous motors (AM) |
| 4 | Input voltage | 350-900V DC or 380V AC |
| 5 | Output pressure | 0-380V AC |
| 6 | Output frequency | 0-400Hz |
| 7 | Output current | 10A |
| 8 | Number of pump phases | 3 phase |
| 9 | Protection function | Phase loss protection, phase short circuit protection, ground circuit protection, input and output short circuit protection |
| ten | Water/dust resistant level | IP20 |
| 11 | Cooling method | Air cooled |
| twelfth | Running mode | MPPT, CVT |
| 13 | Ambient temperature range | -10°C ~ +50°C |
| 14 | MPPT performance | 99.6% |
| 15 | Size | 253x187x228 (mm) |
| 16 | Mass | 2.2Kg |
| 17 | Guarantee | 2 years |
| 18 | Standard | CE certificate |
– The SWP system consumes little or no fuel. By using available sunlight, they avoid the limitations of weak or expensive rural fuel supply networks.
– Unlike diesel-powered systems (which use a diesel generator to power the pump), solar pumps produce clean energy with zero or reduced emissions and pollutants. much.
– Durable and reliable solar pumping system. PV panels have a design life of over 20 years and solar pumps have few moving parts and require little maintenance (unlike diesel pumps).
– The solar pumping system is modular so it can be adjusted to current power needs and easily expanded by adding additional solar panels and accessories.
– A properly installed solar power system will be safe and pose little risk due to low system voltage. Adequate protection will minimize the risk of fire.

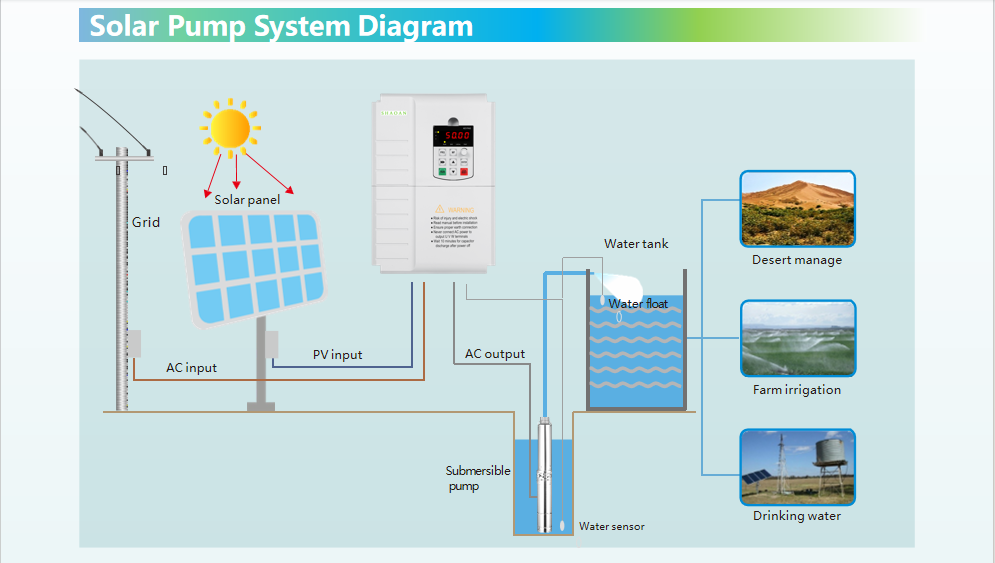

There are many practical applications of 3-phase solar pump inverters in many different fields. Here are some popular applications:
– Agricultural irrigation systems: In agriculture, 3-phase solar pump inverters are used to adjust the speed and pressure of irrigation systems based on available solar energy levels. This helps optimize water and energy usage, improve production efficiency and reduce electricity costs.
– Clean water supply system: In areas where there is no mains power source or where there is a need for local water supply, a 3-phase solar pump inverter can be used to operate the water pumps clean from renewable energy sources. This helps provide clean water effectively and sustainably.
– Water supply systems in urban areas: In water supply systems in urban areas, 3-phase solar pump inverters can be integrated to optimize the operation of water supply pumps to areas. different areas. This reduces water and energy waste, improves system performance and reduces operating costs.
– Industrial and commercial applications: In industrial and commercial applications, 3-phase solar pump inverters can be used to control pumping systems during manufacturing, cooling or transport. transfer. This helps optimize the operation of industrial processes, reduce energy costs and protect the environment.
– Independent solar water supply system: In remote areas or without grid infrastructure, 3-phase solar pump inverters can be used to operate water supply systems from solar energy. This helps provide clean water and energy independently and sustainably.
SHAOAN strives to become a leading company in R&D, Manufacturing and Sales of Industrial Automation Control and Green Energy products related to Variable Speed Drives (VFD), Solar Pump Inverters Solar Pump Inverter, etc
SHAOAN masters the core technology of control algorithm and has a good R&D team possessing more than 12 years of INVERTER technology. SHAOANN employees are all experienced in the VFD field and have more knowledge about the assembly and testing manufacturing process to maintain quality.
