Technical specifications table of 15kW SHAOAN pump inverter

Status	Criteria	Solar Pump Inverter Shaoan
1	Product code	SA500-4T-015G
2	Inverter capacity	15kW
3	Engine type	Control of permanent magnet synchronous motors (PMSM) and asynchronous motors (AM)
4	Input voltage	350-900V DC or 380V AC
5	Output voltage	0-380V AC
6	Output frequency	0-400Hz
7	Output current	32A
8	Number of pump phases	3 phase
9	Protection function	Phase loss protection, phase short circuit protection, ground circuit protection, input and output short circuit protection
10	Water/dust resistance level	IP20
11	Cooling method	Air cooled
12	Running mode	MPPT, CVT
13	Ambient temperature range	-10°C ~ +50°C
14	MPPT efficiency	99.6%
15	Size	390289270 (mm)
16	Mass	6.8Kg
17	Guarantee	2 years
18	Standard	CE Certificate

Advantages of 15kW solar pump inverter (solar pump inverter) 3 phase Shaoan

– SWP systems consume little or no fuel. By using readily available sunlight, they avoid the constraints of poor or expensive fuel supply networks in rural areas.

– Unlike diesel-powered systems (i.e. using a diesel generator to power the pump), solar pumps produce clean energy with zero or greatly reduced emissions and pollutants.

– Solar pumping systems are durable and reliable. PV panels have a design life of over 20 years and solar pumps have few moving parts and require little maintenance (unlike diesel pumps).

– Solar pumping systems are modular so they can be adjusted to current power needs and easily expanded by adding additional solar panels and accessories.

– A properly installed solar system is safe and poses little risk due to low system voltage. Adequate protection will minimize the risk of fire.

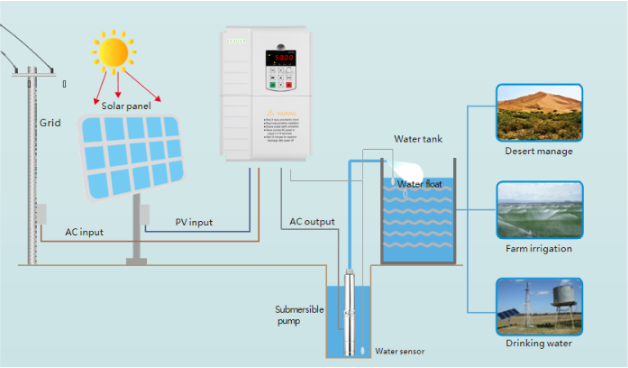

Applications of Solar Pump Inverter

There are many practical applications of 3 phase solar pump inverters in many different fields. Here are some common applications:

– Agricultural irrigation systems: In agriculture, 3-phase solar pump inverters are used to regulate the speed and pressure of irrigation systems based on the available solar power level. This helps optimize water and energy usage, improve production efficiency and reduce electricity costs.

– Clean water supply system: In areas where there is no grid power or where there is a need for local water supply, 3-phase solar pump inverters can be used to operate clean water pumps from renewable energy sources. This helps to provide clean water efficiently and sustainably.

– Urban water supply systems: In urban water supply systems, 3-phase solar pump inverters can be integrated to optimize the operation of pumps supplying water to different areas. This helps reduce water and energy waste, improve system efficiency and reduce operating costs.

– Industrial and commercial applications: In industrial and commercial applications, 3-phase solar pump inverters can be used to control pumping systems during production, cooling or transportation. This helps to optimize the operation of industrial processes, reduce energy costs and protect the environment.

– Independent solar water supply system: In remote areas or areas without grid infrastructure, 3-phase solar pump inverters can be used to operate solar water supply systems. This helps to provide clean water and energy in an independent and sustainable way.

About the Shaoan brand

SHAOAN Electric strives to become a leading company in R&D, Manufacturing and Sales of Industrial Automation Control and Green Energy products related to Variable Speed Drive (VFD), Solar Pump Inverter, etc.

SHAOAN masters the core technology of control algorithm and has a good R&D team with more than 12 years of INVERTER technology. SHAOAN's staff are all experienced in VFD field and have more knowledge of assembly production and testing process to maintain quality.
