Solar pump inverter
Home Solar pump inverter

SHAOAN Hot Sale 0.75KW MPPT Controller Three / Single Phase 220V 380V Solar Pump Inverter For AC Pumps

SHAOAN Hot Sale 0.75KW MPPT Controller Three / Single Phase 220V 380V Solar Pump Inverter For AC Pumps
SHAOAN Hot Sale 0.75KW MPPT Controller Three / Single Phase 220V 380V Solar Pump Inverter For AC Pumps
SHAOAN Hot Sale 0.75KW MPPT Controller Three / Single Phase 220V 380V Solar Pump Inverter For AC Pumps

SHAOAN Hot Sale 0.75KW MPPT Controller Three / Single Phase 220V 380V Solar Pump Inverter For AC Pumps

1. Maximum power point tracking (MPPT) with fast response speed and stable operation efficiency> 99%

2. Suits for most 3 phase AC pumps and AC PMSM high efficiency pumps

3. Compatible with AC grid and DC power supply input at same time

4. Built in automatic sleep-wake up function

5. Dry run (under load ) protection

6. Motor maximum current protection

7. Low input power protection

8. Lowest stop frequency protection

9. The PQ (power/flow) performance curve enables calculating the flow output from the pump

10. Digital control for fully automatic operation, data storage and protective functions

11. Low water probe sensor, and water level control function

12. Strong lightning protection

13. Ambient temperature for using: -10 to +50˚C

14. Clock relay card for timing stop and stop control

15. LCD keypad as optional

16. Input VOC auto-detect function

Inquire Now

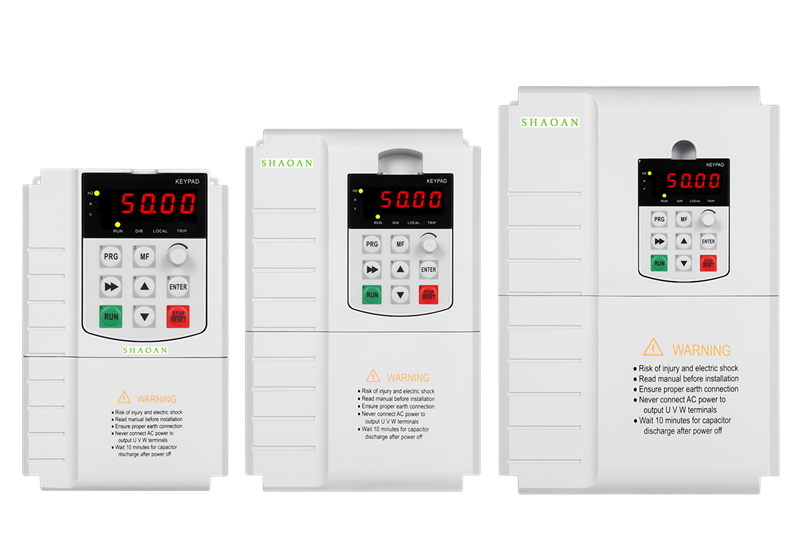

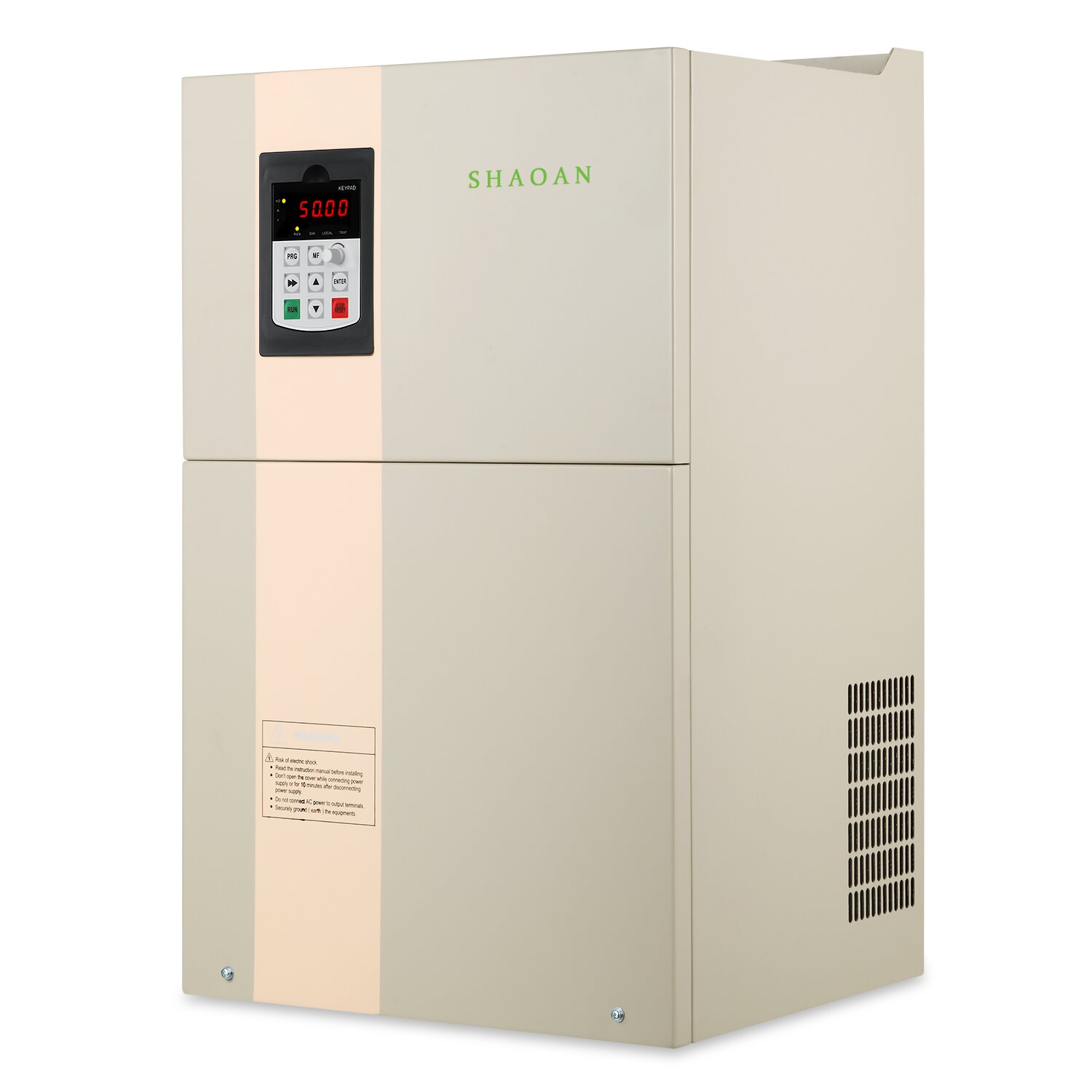

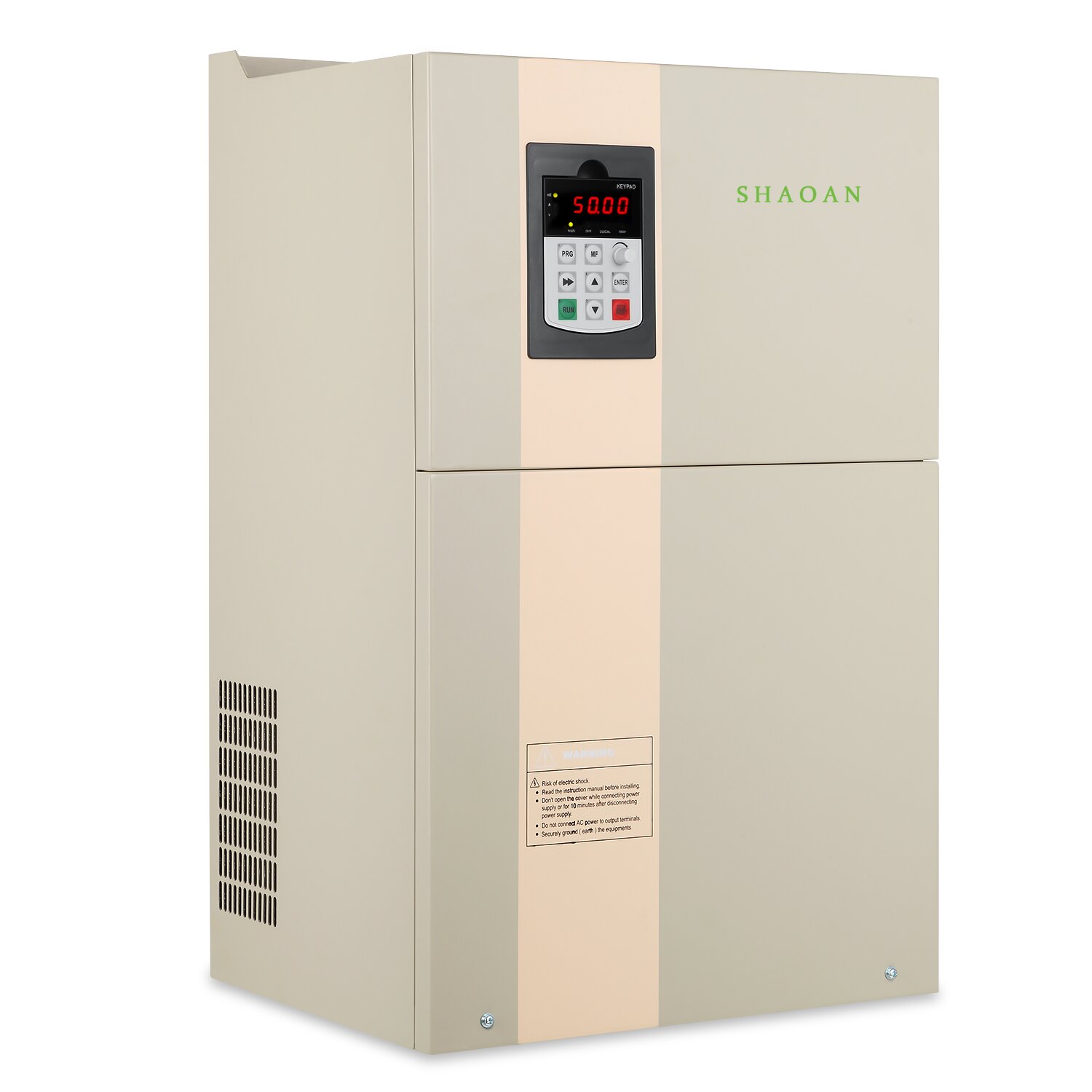

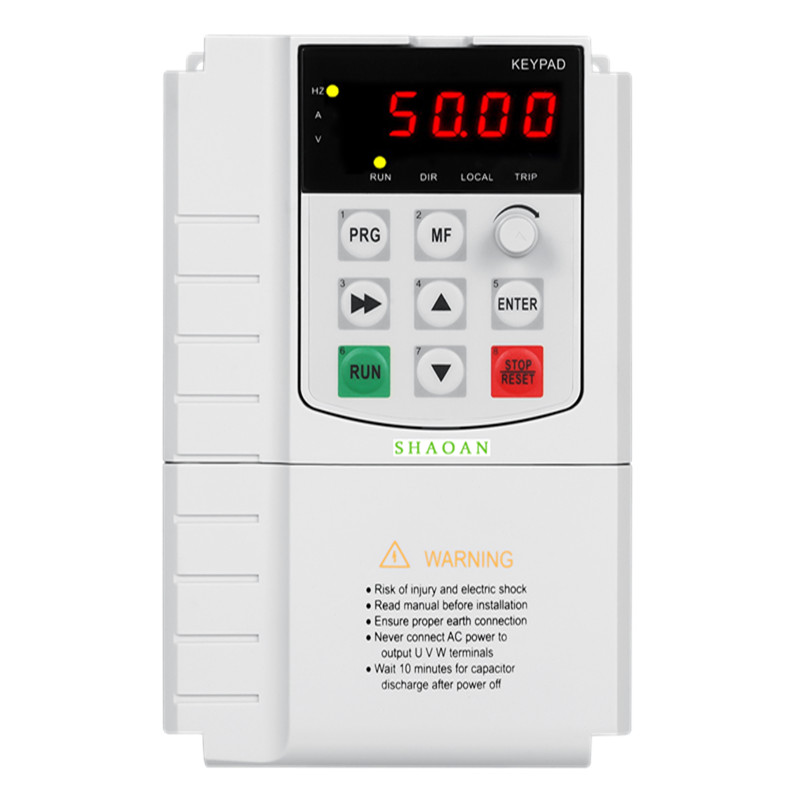

SHAOAN SA500 series solar pump inverter Features & Advantages:



SHAOAN SA500 series solar water pump inverters cover voltage levels of 220V AC and 380V AC, support single-phase 220V and three-phase 220V/380V water pumps, and power from 0.75KW to 630KW.

  1. The advanced MPPT algorithm is adopted to ensure that the solar tracking efficiency reaches 99%.
  2. After the inverter is connected to the solar panel, it will automatically start or sleep without any parameter settings.

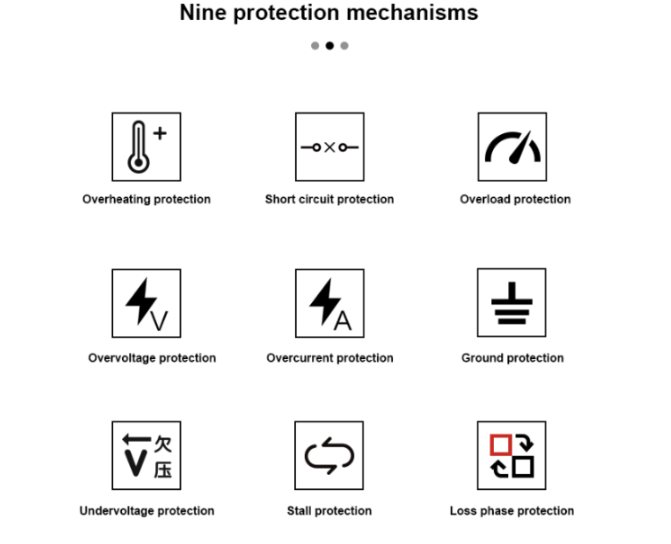

  3. Use a variety of protection measures, including PV overvoltage protection, PV reverse polarity warning, over-temperature automatic derating, etc., to extend product life.
  4. SA500 series can realize automatic switching between solar energy input and grid input by configuring booster or automatic switching cabinet (meeting lightning protection requirements), and realize 24-hour unattended operation.
  5. Support the configuration of GPRS module, and realize remote parameter viewing and control through mobile APP.
  6. Cabinet solutions that support IP65 rating.

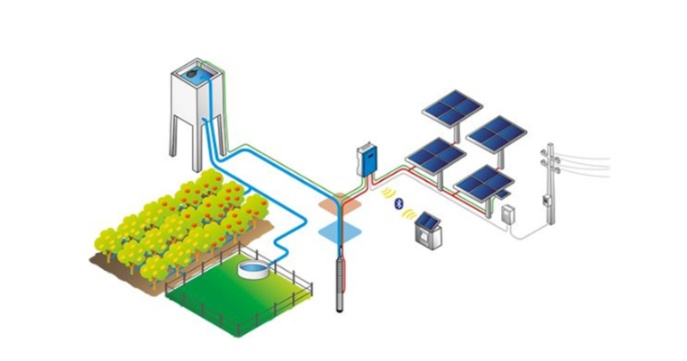

How Does a Solar Pump System Work?

This product is suitable for solar photovoltaic pump system, aimed at environmental and economy market, to replace battery with retain water and without any battery components.Photovoltaic Pump Controller receives the DC which produced by Solar Modules and then transform into AC to drive all kinds of pump directly.



It is reaction rapidly, little temperature and humidity influence, balance the system’s supply and demands, do well in energy-saving, and so on.



Datasheet:



SN

Model No.

Rate current

Output voltage

Applicable for pumps

External of drive size(mm)H*W*D

MPPT voltage (VDC)

Weight (kg)

SA500-XX-M mini model 2S series: Input 150-450V DC or 200 to 240V AC, VOC 350V DC

1

SA500-2S-1P5G-M

7A

0-256VAC

1.5KW

151*100*127

260 to 375

1.4

2

SA500-2S-2P2G-M

10A

0-256VAC

2.2KW

151*100*127

260 to 375

1.4

SA500-XX-M mide model 4T series: Input 350 to 800V/900VDC or 380 to 480V AC, VOC 620VDC

1

SA500-4T-1P5G-M

3.7A

0-480VAC

1.5KW

151*100*127

486 to 750

1.4

2

SA500-4T-2P2G-M

5A

0-480VAC

2.2KW

151*100*127

486 to 750

1.4

SA500 standard model 2S series : Input 150 to 450V DC or 200 to 240V AC, VOC 350 VDC

1

SA500-2S-1P5G

7A

0-256VAC

1.5KW

185*118*153.8

260 to 375

2

2

SA500-2S-2P2G

10A

0-256VAC

2.2KW

185*118*153.8

260 to 375

2.5

3

SA500-2S-004G

16A

0-256VAC

4.0KW

247*160*175

260 to 375

4.3

SA500 standard model 4T series : Input 350 to 800V/900VDC or 380 to 480V AC, VOC 620V DC

1

SA500-4T-2P2G

5A

0-480VAC

2.2KW

185*118*153.8

486 to 750

3

2

SA500-4T-004G

10A

0-480VAC

4KW

185*118*153.8

486 to 750

3

3

SA500-4T-5P5G

13A

0-480VAC

5.5KW

247*160*175

486 to 750

4.2

4

SA500-4T-7P5G

17A

0-480VAC

7.5KW

247*160*175

486 to 750

4.3

5

SA500-4T-011G

25A

0-480VAC

11KW

247*160*175

486 to 750

4.5

6

SA500-4T-015G

30A

0-480VAC

15KW

320*220*197.3

486 to 750

7.3

7

SA500-4T-018G

37A

0-480VAC

18KW

320*220*197.3

486 to 750

7.5

8

SA500-4T-022G

45A

0-480VAC

22KW

415*230*205

486 to 750

12

9

SA500-4T-030G

60A

0-480VAC

30KW

480*260*215

486 to 750

17

10

SA500-4T-037G

75A

0-480VAC

37KW

480*260*215

486 to 750

17.5

11

SA500-4T-045G

91A

0-480VAC

45KW

575*320*310

486 to 750

35

12

SA500-4T-055G

110A

0-480VAC

55KW

575*320*310

486 to 750

36

13

SA500-4T-075G

150A

0-480VAC

75KW

620*380*310

486 to 750

45

14

SA500-4T-093G

180A

0-480VAC

93KW

620*380*310

486 to 750

51

15

SA500-4T-110G

220A

0-480VAC

110KW

620*380*310

486 to 750

54

16

SA500-4T-132G

250A

0-480VAC

132KW

620*380*310

486 to 750

55

17

SA500-4T-160G

310A

0-480VAC

160KW

817*500*348

486 to 750

94

18

SA500-4T-185G

340A

0-480VAC

185KW

817*500*348

486 to 750

96

19

SA500-4T-200G

380A

0-480VAC

200KW

817*500*348

486 to 750

98

20

SA500-4T-220G

415A

0-480VAC

220KW

817*500*348

486 to 750

98

21

SA500-4T-250G

470A

0-480VAC

250KW

1430*940*670

486 to 750

150



SA500-XX-L 2S series: Input 150-450V DC or 200 to 240V AC, VOC 350V DC

1

SA500-2S-1P5G-L

7A

0-256VAC

1.5KW

298*165*201

260 to 375

3

2

SA500-2S-2P2G-L

10A

0-256VAC

2.2KW

298*165*201

260 to 375

3

3

SA500-2S-004G-L

16A

0-256VAC

4.0KW

310*205*225

260 to 375

4.5

SA500-XX-L 4T series : Input 350 to 800V/900V DC or 380 to 480V AC, VOC 620V DC

1

SA500-4T-2P2G-L

5A

0-480VAC

2.2KW

298*165*201

486 to 750

3

2

SA500-4T-004G-L

10A

0-480VAC

4KW

298*165*201

486 to 750

3

3

SA500-4T-5P5G-L

13A

0-480VAC

5.5KW

310*205*225

486 to 750

4.5

4

SA500-4T-7P5G-L

17A

0-480VAC

7.5KW

310*205*225

486 to 750

4.5

SA500-XX-S 2S series: Input 150-450V DC or 200 to 240V AC, VOC 350V DC

1

SA500-2S-1P5G-S

7A

0-256VAC

1.5KW

245**160*180

260 to 375

5

2

SA500-2S-2P2G-S

10A

0-256VAC

2.2KW

245**160*180

260 to 375

5

3

SA500-2S-004G-S

16A

0-256VAC

4.0KW

320*215*190

260 to 375

7.5

SA500-XX-S 4T series : Input 350 to 800V/900V DC or 380 to 480V AC, VOC 620V DC

1

SA500-4T-2P2G-S

5A

0-480VAC

2.2KW

245**160*180

486 to 750

5

2

SA500-4T-004G-S

10A

0-480VAC

4KW

245**160*180

486 to 750

5

3

SA500-4T-5P5G-S

13A

0-480VAC

5.5KW

320*215*190

486 to 750

7.5

4

SA500-4T-7P5G-S

17A

0-480VAC

7.5KW

320*215*190

486 to 750

7.5

5

SA500-4T-011G-S

25A

0-480VAC

11KW

320*215*190

486 to 750

7.5

6

SA500-4T-015G-S

30A

0-480VAC

15KW

410*275*200

486 to 750

13

7

SA500-4T-018G-S

37A

0-480VAC

18KW

410*275*200

486 to 750

13

8

SA500-4T-022G-S

45A

0-480VAC

22KW

410*275*200

486 to 750

13
