Product Introduction

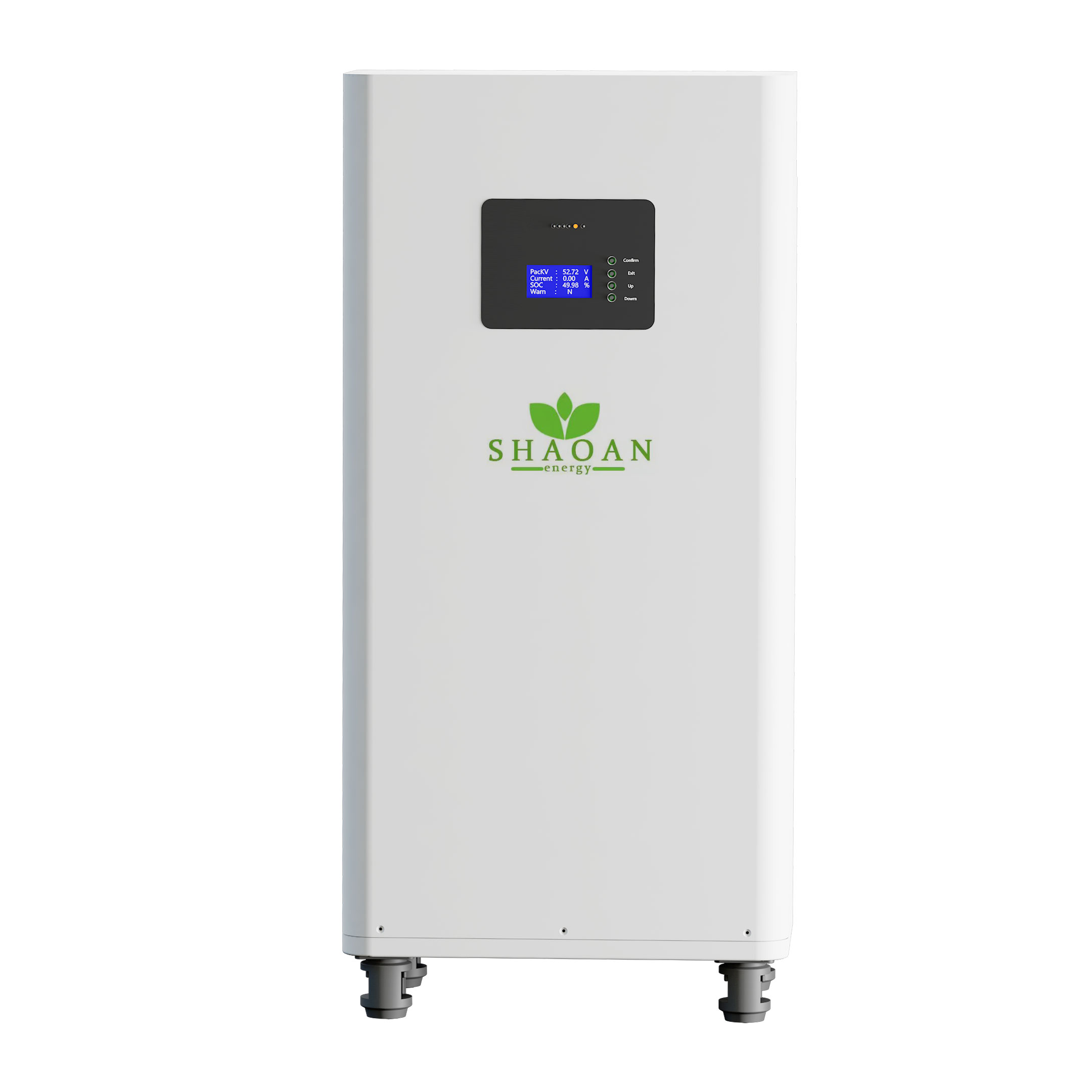

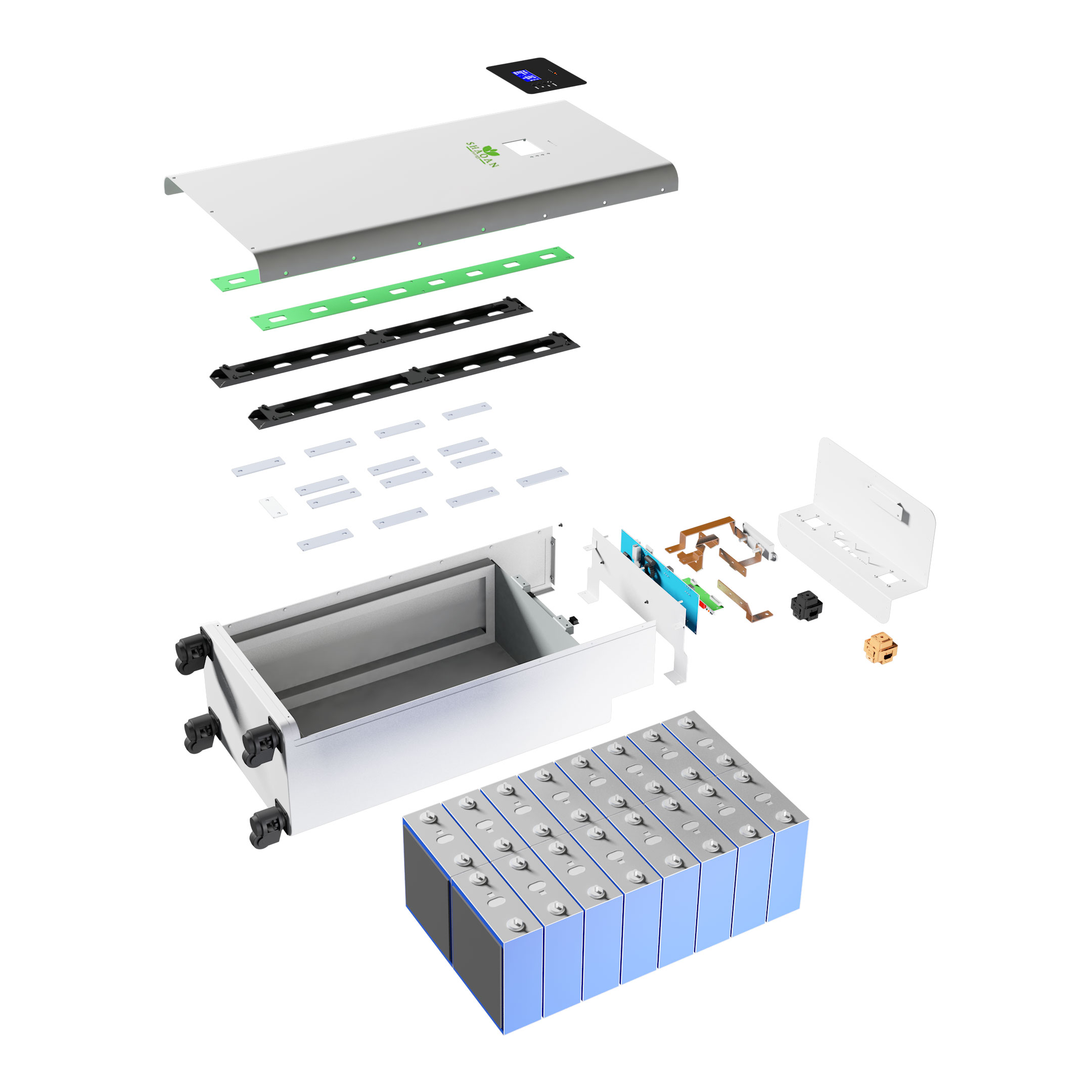

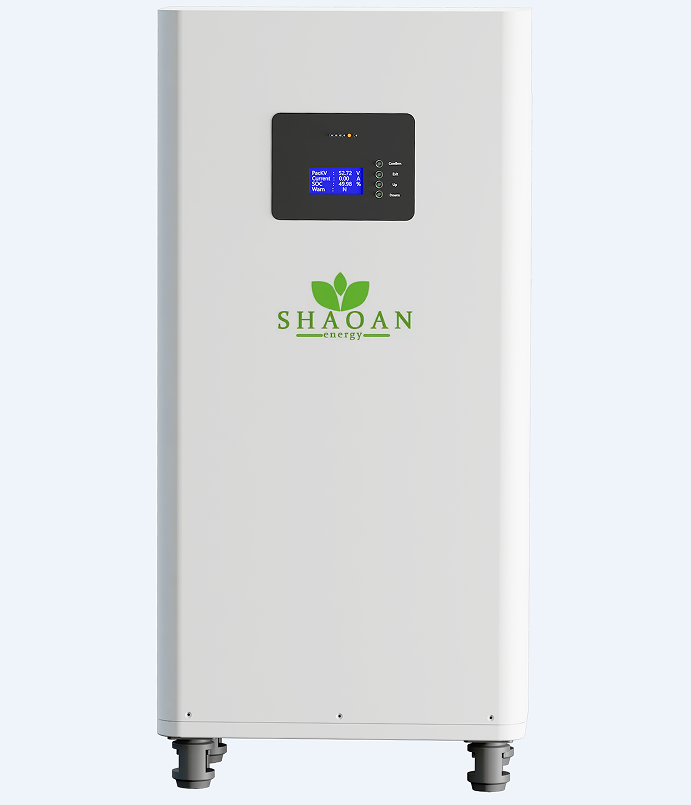

This battery pack system is applicable both for residential and commercial energy storage system, which is assembled with 3.2 V 280 Ah lithium iron phosphate cell in 16 S1P configuration, and accompany with Smart BMS. Each pack support 16packs in parallel to easily expand capacity. Do not mix parallel the battery packs of different brands or models.
Features and Advantages
1. Battery voltage calculation: 16 battery voltage sampling test,deviation ± 20mV
2.Battery and ambient temperature detection: 4 battery temperature
sensors, 1 ambient temperature sensor, 1 MOS temperature sensor, deviation ± 2 C.
3.ALL A grade cells to keep quality and long cycle times
4. Smart cell balance: charging and static balance strategies can be
flexibly set to effectively extend the service life.
5.Communication interface: PC or intelligent front-end can monitor
6..Battery management system parameter can be set in the battery monitoring system.
7.Working mode: charging and discharging current limiting, constant
voltage output, direct output and other working modes can be set in the monitoring system
8. Multiple protection functions:hardware protection,battery protection,high and low temperature protection
Technical Parameters
|
Items |
Specifications |
|
Rated energy(kWh) |
14.336KWh |
|
Configuration |
1P16S |
|
Nominal Voltage(V) |
51.2V |
|
Working Voltage(V) |
42V~58.4V |
|
Nominal Capacity(Ah) |
280Ah |
|
Rated charge/discharge Current(A) |
100A/200A @25± 2C |
|
Maximum charging current |
200A@25± 2C |
|
Maximum discharge current |
200A @25± 2C |
|
Working Temperature |
0~40C(Charge) -20~40C(Discharge) |
|
Humidity(%) |
5~95% |
|
Altitude Limited(m) |
0-3000m |
|
Weight(Kg) |
113Kg± 3kg |
|
Dimension(mm) |
817×412×267mm |
|
Storage temperature and humidity |
- 10C~35C (Within one month of storage) 25± 2C (Within three months of storage) 65%±20% RH |
|
cycle life |
6000 cycles @25C 50ACharge and discharge current 80%DOD |
|
IP grade |
IP20 |
|
Communication mode |
CAN&RS485 |
