1.Warranty time 10 years
2. One key switch machine, the operation is more convenient
3.Suitable for long-term charge and discharge cycles
4.Adopt multi-level energy consumption management
5.Multiple parallel machines, automatic address acquisition without manual operation
6.Support high-current charging and discharging: 100A charging and discharging
7.Front operation and front wiring are convenient for installation and maintenance
8.Adopt high-performance processors, international brand devices（A grade lithium cells）
9.Multiple communication interfaces: RS485, RS232, CAN
10.Highly compatible BMS, seamless connection with energy storage inverter
11.Perfectly compatible with more than 20 brands inverter;

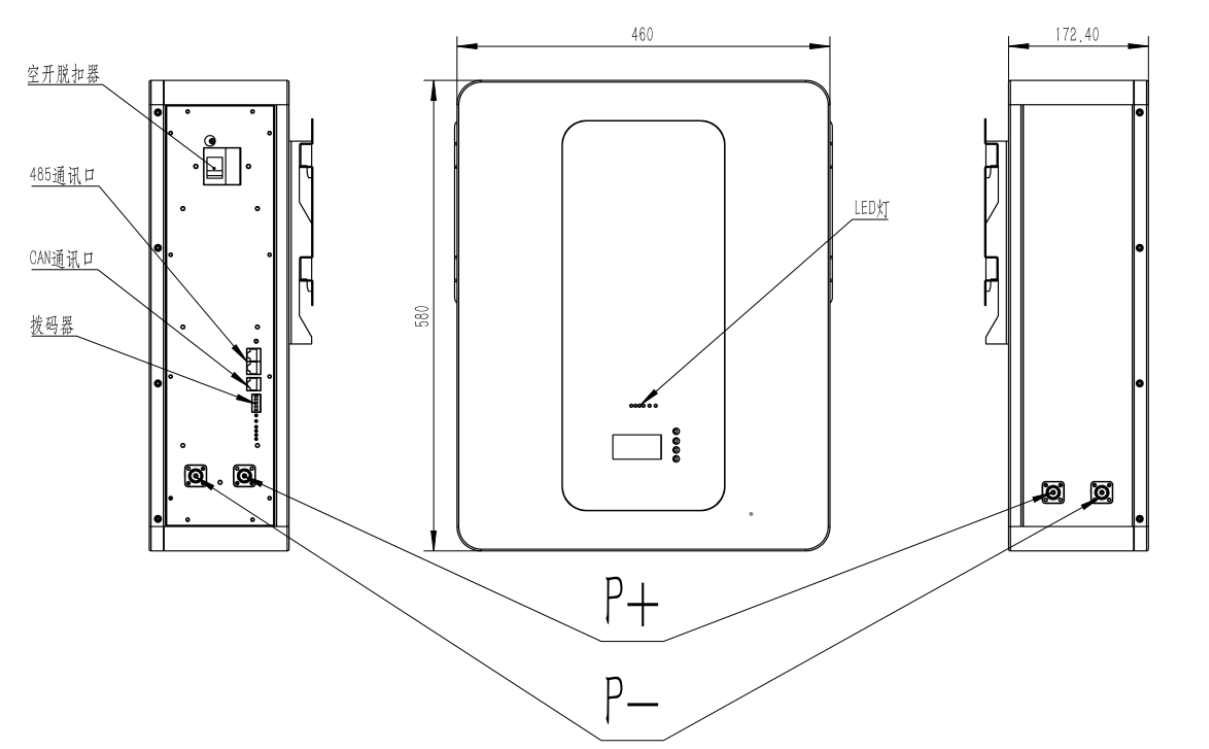

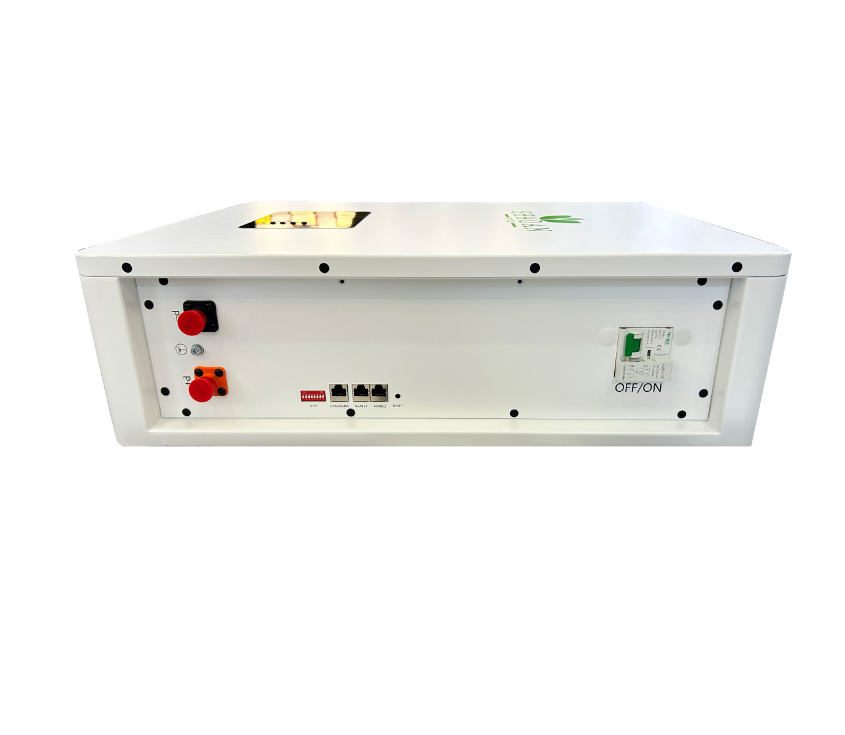

2.Appearance and interface
3. Parameters
|
Items |
Specifications |
|
Rated energy(kWh) |
5.12KWh |
|
Configuration |
2P16S |
|
Nominal Voltage(V) |
51.2V |
|
Working Voltage(V) |
42V~58.4V |
|
Nominal Capacity(Ah) |
100Ah |
|
Rated charge/discharge Current(A) |
50A/100A @25±2℃ |
|
Maximum charging current |
100A@25±2℃ |
|
Maximum discharge current |
100A @25±2℃ |
|
Working Temperature |
0～40℃(Charge) -20～40℃(Discharge) |
|
Humidity(%) |
5~95% |
|
Altitude Limited(m) |
0-3000m |
|
Weight(Kg) |
48Kg±3kg |
|
Dimension(mm) |
580×460×172.4mm |
|
Storage temperature and humidity |
-10℃~35℃（Within one month of storage） 25±2℃（Within three months of storage） 65%±20%RH |
|
weight |
48kg±3kg |
|
cycle life |
6000 cycles @25℃ 50A charge and discharge current 70% standard capacity 90% DOD |
|
IP grade |
IP20 |
|
Communication mode |
CAN&RS485 |

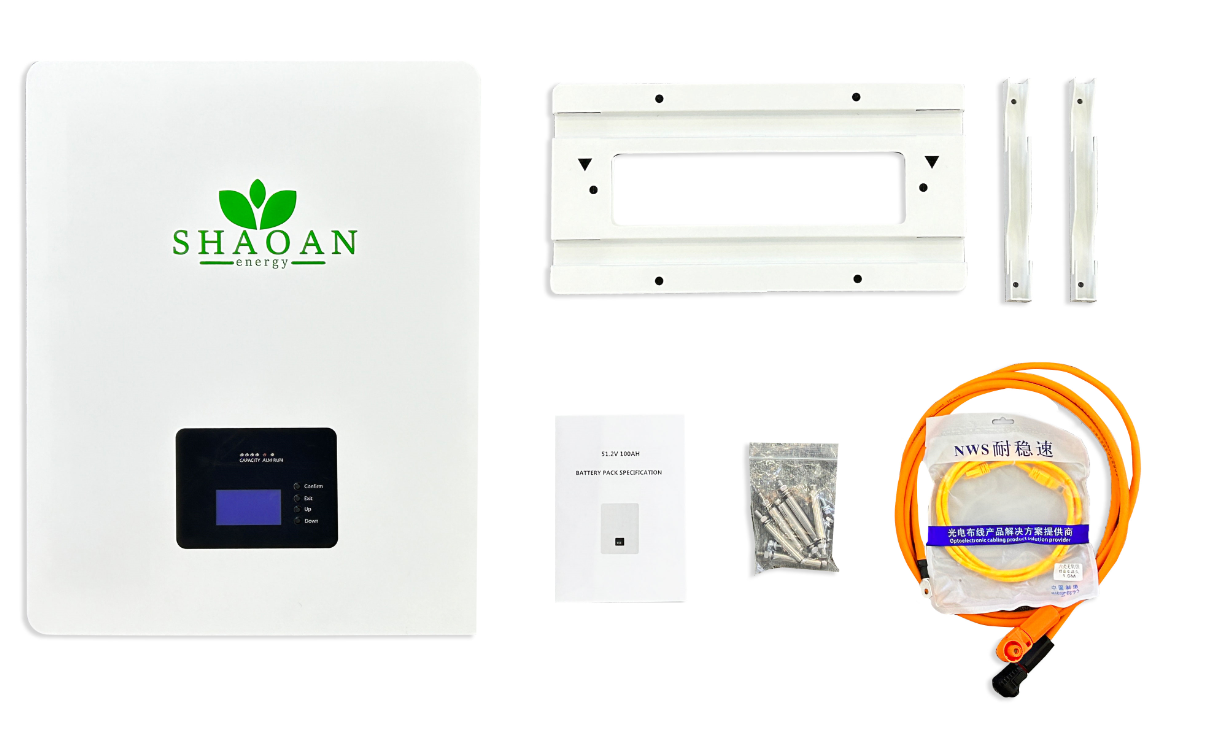

4. Packing list
