1phase 220V to 3phase 380V 11KW phase converter motor speed controller

1phase 220V to 3phase 380V 11KW phase converter motor speed controller
1phase 220V to 3phase 380V 11KW phase converter motor speed controller
1phase 220V to 3phase 380V 11KW phase converter motor speed controller

1phase 220V to 3phase 380V 11KW phase converter motor speed controller

1phase 220V to 3phase 380V phase converter inverter motor speed controller, drives well 3phase 380V motor with 1phase 220V home grid power from 2.2KW to 18.5KW

Inquire Now

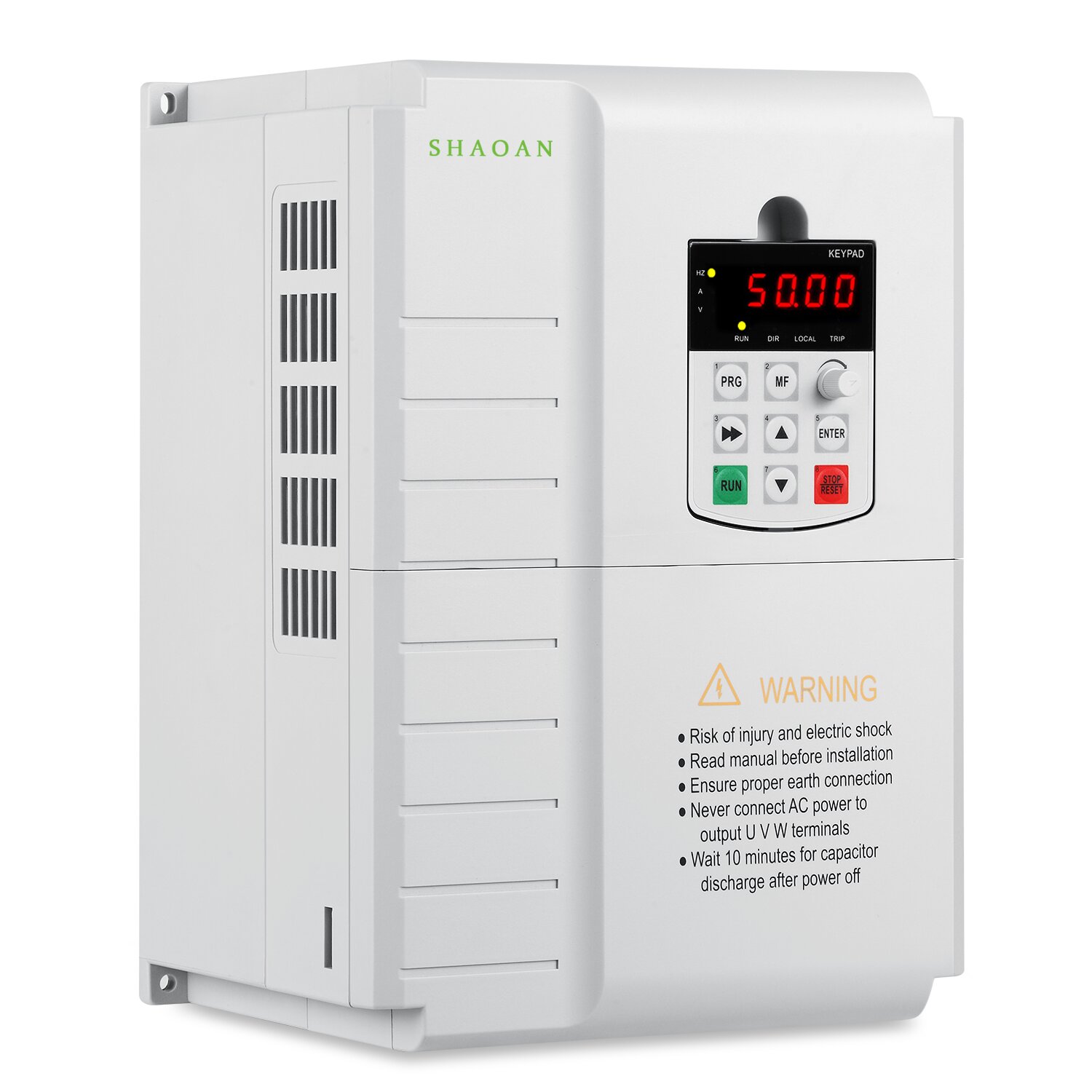

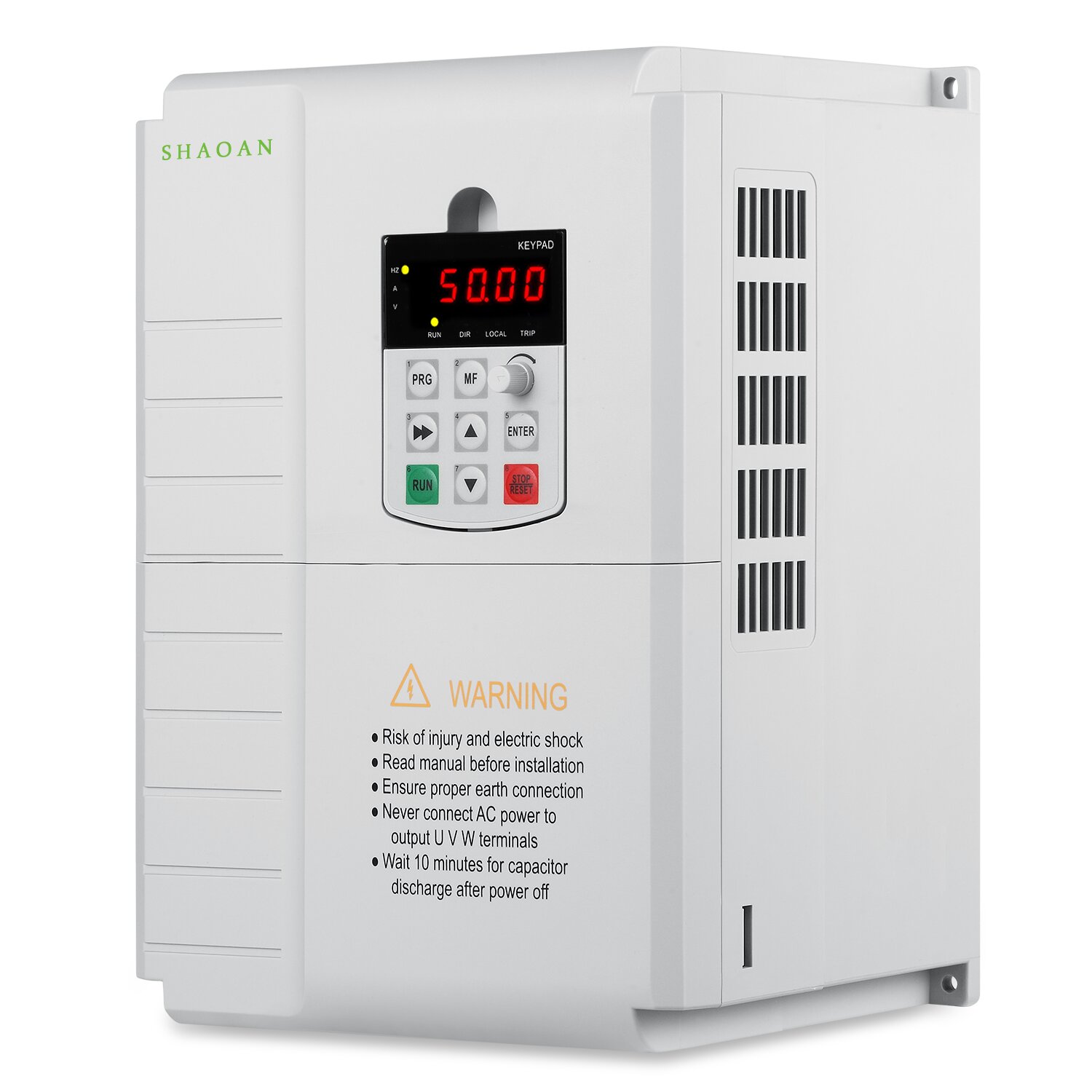

SHAOAN 1phase 220V to 3phase 380V 11KW phase converter 220v to 380v vfd motor speed controller
Brand: SHAOAN
Model No.: SA500-2S4T-011G
Input Voltage: 1phase 220VAC
Output Voltgae: 3phase 380VAC
Rated Power: 11KW 22A
Application: Industrial automation, motor control, motor speed regulation, solar pumping.
Optional function: 350-800VDC input, used as solar pumping inverter.

Phase Converter Main Features: ( Power range: 2.2KW to 18KW) 1phase to 3phase vfd
1. 1phase 220V input and 3phase 380V output, drives well 3phase 380V motor with 220v home grid power.
2. from 2.2KW to 18KW, heavy duey.
3. Solar DC input is optional.
4. Powerful hardware design with full materials
5. All series use IGBT module
6. Adopts international advanced vector control algorithm
7. Use the latest generation TI DSP, its computing speed increases 50%
    Offers 100% starting torque with sensorless vector control
    Complete Protection Function like: under/over voltage, over current, phase missing…
8. Ease to Use and rich multiple-function terminal
9. Wide input voltage range,up to ±20%
SHAOAN Phase Converter model number:
 SA500-2S4T series : 1PHASE 220VAC input, 3phase 380VAC output
S.N. Model No Rated current Rated power Input Votage Output Voltage Size (mm) G.W. (KG)
1 SA500-2S4T-2P2G 5A 2.2KW 1phase 220V 3phase 380V 185*118*153.8 2
2 SA500-2S4T-004G 10A 4KW 1phase 220V 3phase 380V 247*160*175 4
3 SA500-2S4T-5P5G 13A 5.5KW 1phase 220V 3phase 380V 247*160*175 4
4 SA500-2S4T-7P5G 17A 7.5KW 1phase 220V 3phase 380V 247*160*175 4
5 SA500-2S4T-011G 22A 11KW 1phase 220V 3phase 380V 320*220*197.3 7
6 SA500-2S4T-015G 30A 15KW 1phase 220V 3phase 380V 320*220*197.3 7
7 SA500-2S4T-018G 37A 18KW 1phase 220V 3phase 380V 320*220*197.3 7.5
